Ravenna
outdoor box wall light
Sheltered glow for garden walls
- IP54 — rain-proof on a garden wall
- Glass on four sides lights the corner
- 18 cm square — a lantern with presence
- E27 bulb, sold separately
- Hardwired
- Dimmable
Estimated arrival 2 Nov to 4 Nov
5 to 7 working days · Tracked delivery Delivery detailsguarantee
on unused lights
01 / The feeling
Traditional Form, Modern Clarity

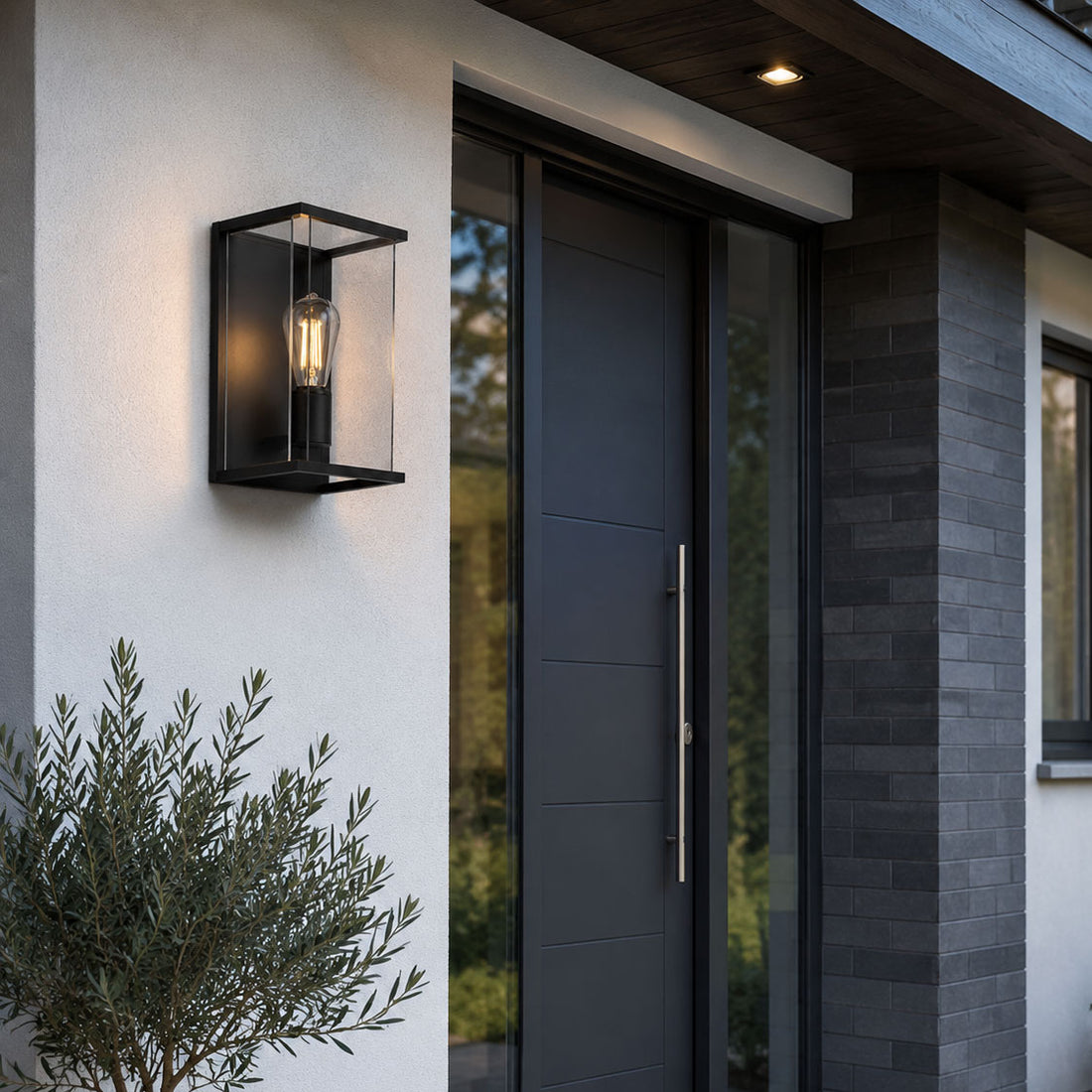

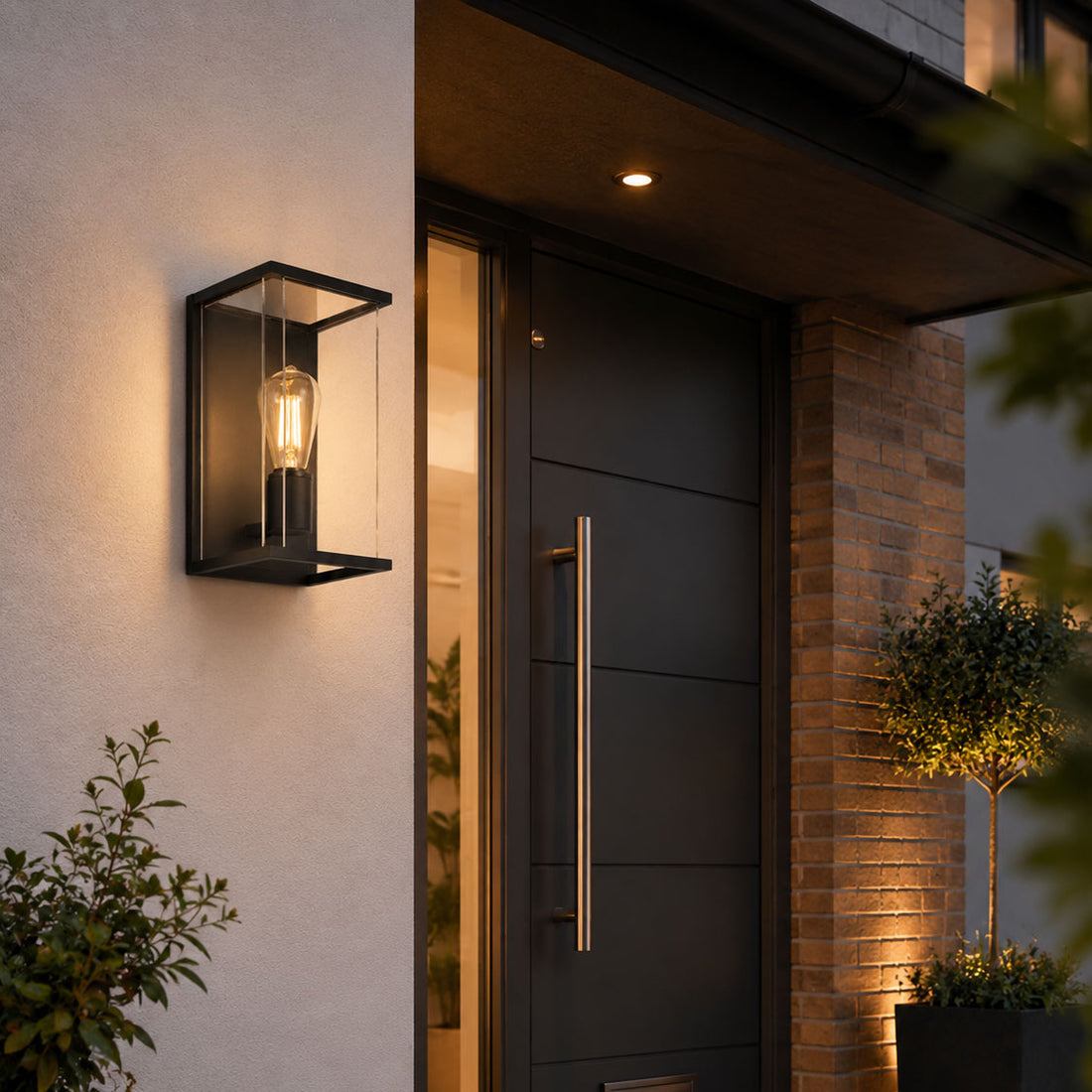

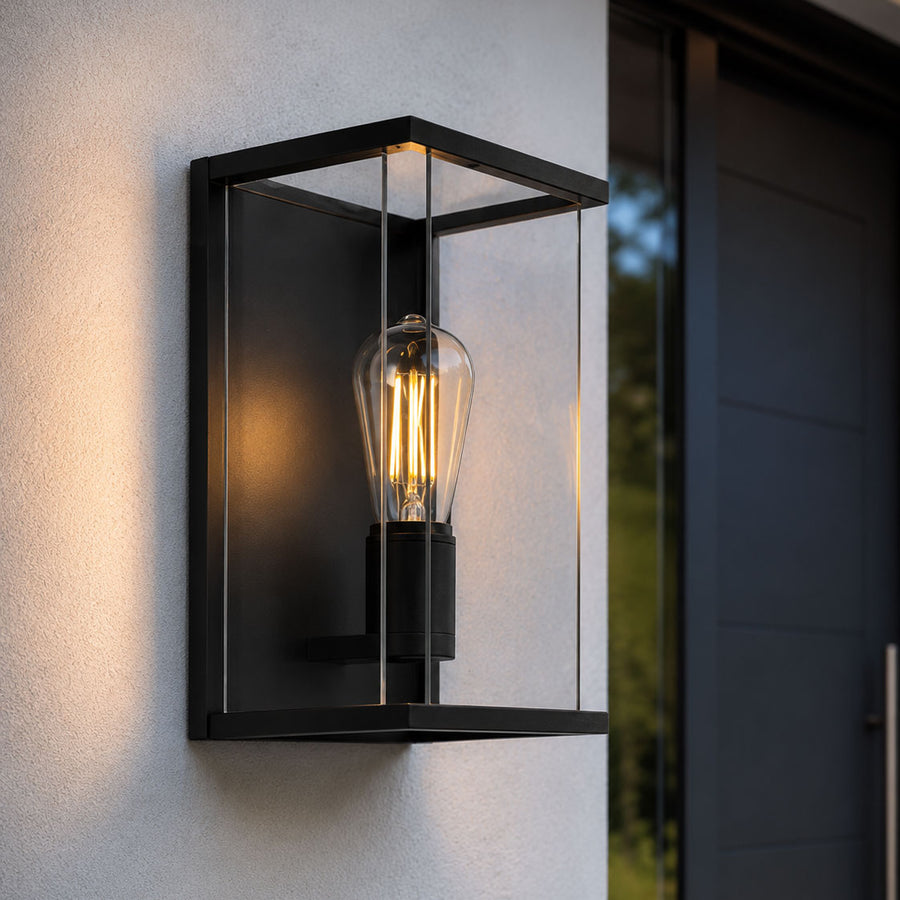

A welcoming glow for your outdoor spaces, this anthracite wall light casts beautiful illumination through its transparent glass diffuser. The Ravenna brings warmth to evening gatherings on the terrace or creates an inviting entrance that greets guests with soft, ambient light. Its clean lines and contemporary anthracite finish complement both modern and traditional exterior settings with understated elegance.
Built to withstand the elements with an IP54 rating, this wall light offers reliable protection against dust and splashes. The standard E27 bulb holder accepts your choice of LED or traditional bulbs up to 15W, and it's fully dimmable for versatile lighting control. Measuring 30cm high and 17.5cm wide, it provides generous illumination without overwhelming smaller spaces. Crafted from quality metal with a robust 2.7kg construction, it's backed by a two-year warranty for complete peace of mind.
Key details: Number of lights: 1 light · Colour family: Grey · Finish: Anthracite · Design: Traditional · Width: 180mm
- IP54 RatedSplash-proof protection for outdoor terraces
- Fully DimmableAdjust brightness to suit any mood
- Classic Lantern DesignElegant glass and anthracite box styling
- 15W
- Max per lamp
- E27
- Lampholder
- 30 cm
- Tall
02 / Find its place
A small footprint.
A lasting impression.
Just 18 cm wide, with a 30 cm vertical line. Add a gentle glow beside the bed or bring warmth to a hallway.
Try the size before you buy
Mark a 30 cm line on your wall with removable tape. Allow 18 cm of depth and check the position from where you sit or lie.
Rated IP54 · Outdoor.
03 / The finer details
Quiet form.
Beautifully finished.
Clear in metal. Hardwired, so a qualified electrician fits it — the mounting hardware is in the box.
- Height
- 30 cm
- Width
- 18 cm
- Projection
- 18 cm
- Weight
- 2.7 kg
- Material
- Metal
- Light source
- E27 ES
- Voltage
- 220-240V
- Electrical class
- Class I
- IP rating
- IP54
- Guarantee
- 2 years
Full specification
Construction
- Material
- Metal
- Finish
- Clear
- Colour
- No
- Shape
- Lantern, Square
- Height
- 300 mm
- Width
- 180 mm
- Projection
- 176 mm
- Weight
- 2.7 kg
- Pack quantity
- 1
Light
- Light source
- E27 ES
- Bulb included
- No — sold separately
- Max bulb wattage
- 15 W per lamp
- Direction
- Omnidirectional
- Dimmable
- Yes
Fitting it
- Mount
- Wall
- Surface / recessed
- Surface
- Wiring
- Hardwired
- Electrician
- Required
- Difficulty
- Easy
- Fixings
- Supplied
- Mounting height
- 1.6–2.0m
Electrical & safety
- Voltage
- 220-240V
- Electrical class
- Class I
- IP rating
- IP54 · Outdoor
- Operating range
- -10°C to 40°C
Cover & compliance
- Made by
- Castlegate Lights
- Guarantee
- 2 years
- Returns
- 30 days, unused
- CE marked
- Yes
- RoHS
- Compliant
A one-page summary you can print or send to your electrician.
What arrives in the box
1× Wall light fitting with mounting bracket
1× Pack of screws and fixings
1× Instruction manual
Good to know
A few questions,
before it comes home.
Does the Ravenna wall light require an electrician to install?
Yes, this is a mains-powered 230V outdoor wall light that must be hardwired into your electrical supply. Under UK Building Regulations Part P, any fixed outdoor lighting installation must be carried out or certified by a qualified electrician, as it involves work in a location exposed to the elements.
What IP rating does this wall light have and can it be used in exposed outdoor locations?
The Ravenna has an IP54 rating, meaning it's protected against dust and water splashes from any direction. This makes it suitable for most outdoor locations such as porches, doorways, and covered patios, but it's not fully waterproof and should ideally be installed under some shelter or overhang for longevity.
What type of bulb do I need and is one included?
This fitting requires an E27 ES (Edison Screw) bulb with a maximum wattage of 15W, but no bulb is included with the light. You can use either a traditional filament bulb or an LED equivalent—we'd recommend a 6-8W LED E27 bulb for optimal brightness and efficiency in an outdoor setting.
Is the Ravenna outdoor wall light dimmable?
Yes, the fitting itself is dimmable, but you'll need to install a compatible dimmer switch and use a dimmable E27 bulb. Standard LED bulbs are not always dimmable, so check the bulb packaging confirms it's suitable for dimming to avoid flickering or poor performance.

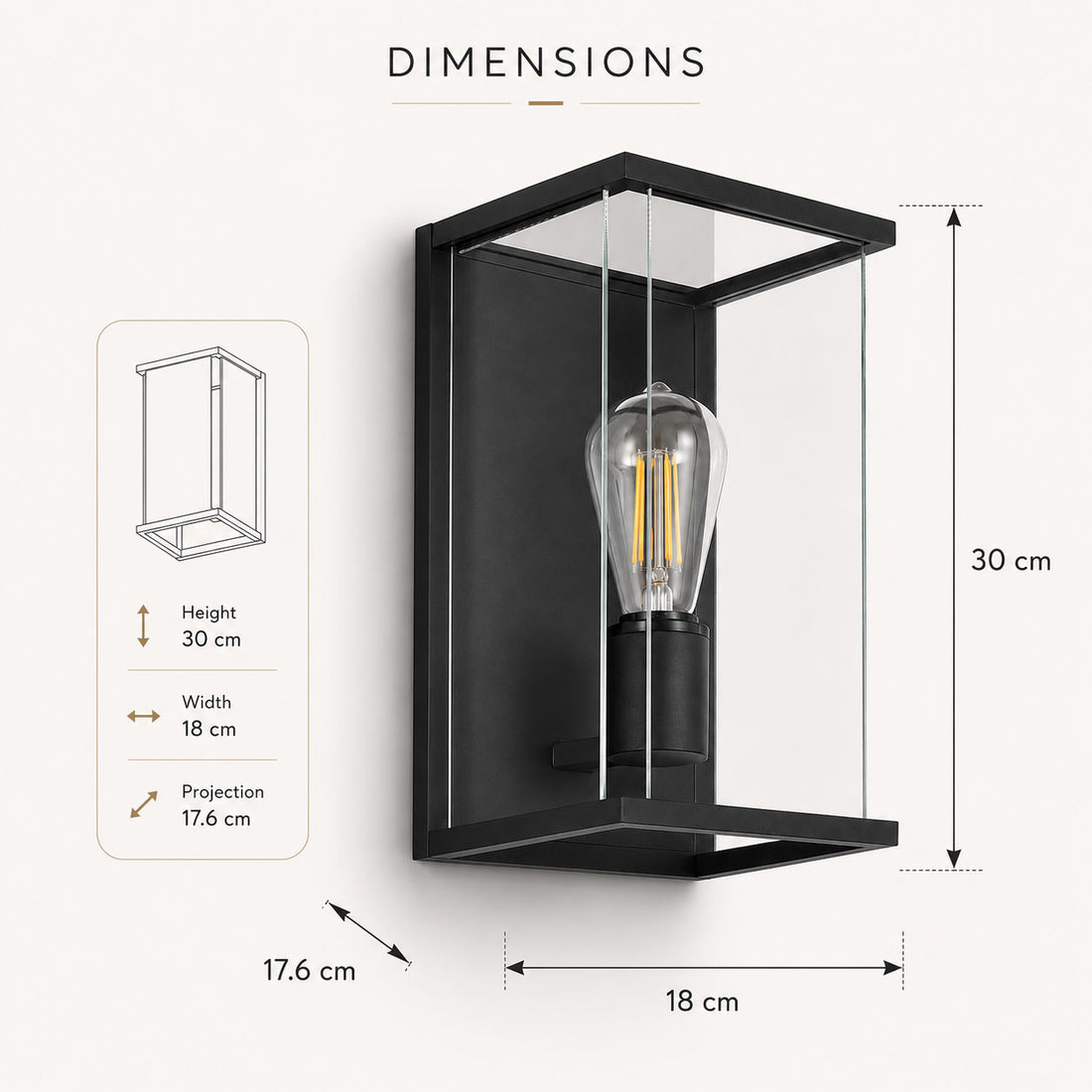

What are the dimensions of this wall light?
The Ravenna measures 300mm in height, 180mm in width, and projects 176mm from the wall. It weighs 2.7kg, so you'll need to ensure it's mounted to a solid surface with appropriate fixings—standard plasterboard plugs won't be sufficient for a fitting of this weight.
What warranty does this outdoor wall light come with?
This wall light comes with a 2-year manufacturer's warranty covering defects in materials and workmanship. The warranty does not cover damage from incorrect installation, misuse, or natural wear to seals and finishes in outdoor environments, so proper installation by a qualified electrician is important.
