DL31 Outdoor Path Light

Yes, this is a mains-powered 230V fitting and outdoor electrical work falls under Part P of the Building Regulations in England and Wales. Unless you're a competent person registered with a self-certification scheme, you'll need a qualified electrician to install it safely and ensure the cable is properly protected and rated for outdoor use. The fitting connects directly to your garden's mains supply rather than plugging in, so proper waterproof connections are essential.

The DL31 uses a standard E27 ES (Edison Screw) bulb, which is not included with the fitting. You can use any E27 bulb up to the maximum wattage specified in the instruction manual—LED bulbs are recommended for energy efficiency and longevity in outdoor settings. Because the fitting is fully dimmable, choose a dimmable E27 LED if you plan to use it with a dimmer switch.

Yes, the IP44 rating means this path light is protected against solid objects larger than 1mm and water splashes from any direction, making it suitable for garden paths, driveways, and borders. It will withstand rain and typical UK weather conditions, though it shouldn't be submerged or placed where it will sit in standing water. For fully exposed coastal or particularly harsh locations, you might consider a higher IP rating, but IP44 is the standard for most garden bollard lights.

Yes, the DL31 is fully dimmable, but you'll need to ensure both your dimmer switch and the E27 bulb you choose are compatible with each other. LED bulbs require LED-compatible dimmer switches—older dimmer switches designed for halogen or incandescent bulbs can cause flickering or damage. Your electrician should install an appropriate trailing-edge or universal dimmer rated for the bulb type you're using.

The DL31 comes with a ground stake in the box, which is designed to push into firm soil or lawn for straightforward installation. For harder ground, driveways, or permanent installations, you may want to set the stake in concrete or use a suitable surface-mount base to ensure stability given the 1-metre height and 2kg weight. The mains cable will need to be buried in conduit at the appropriate depth as per outdoor wiring regulations.

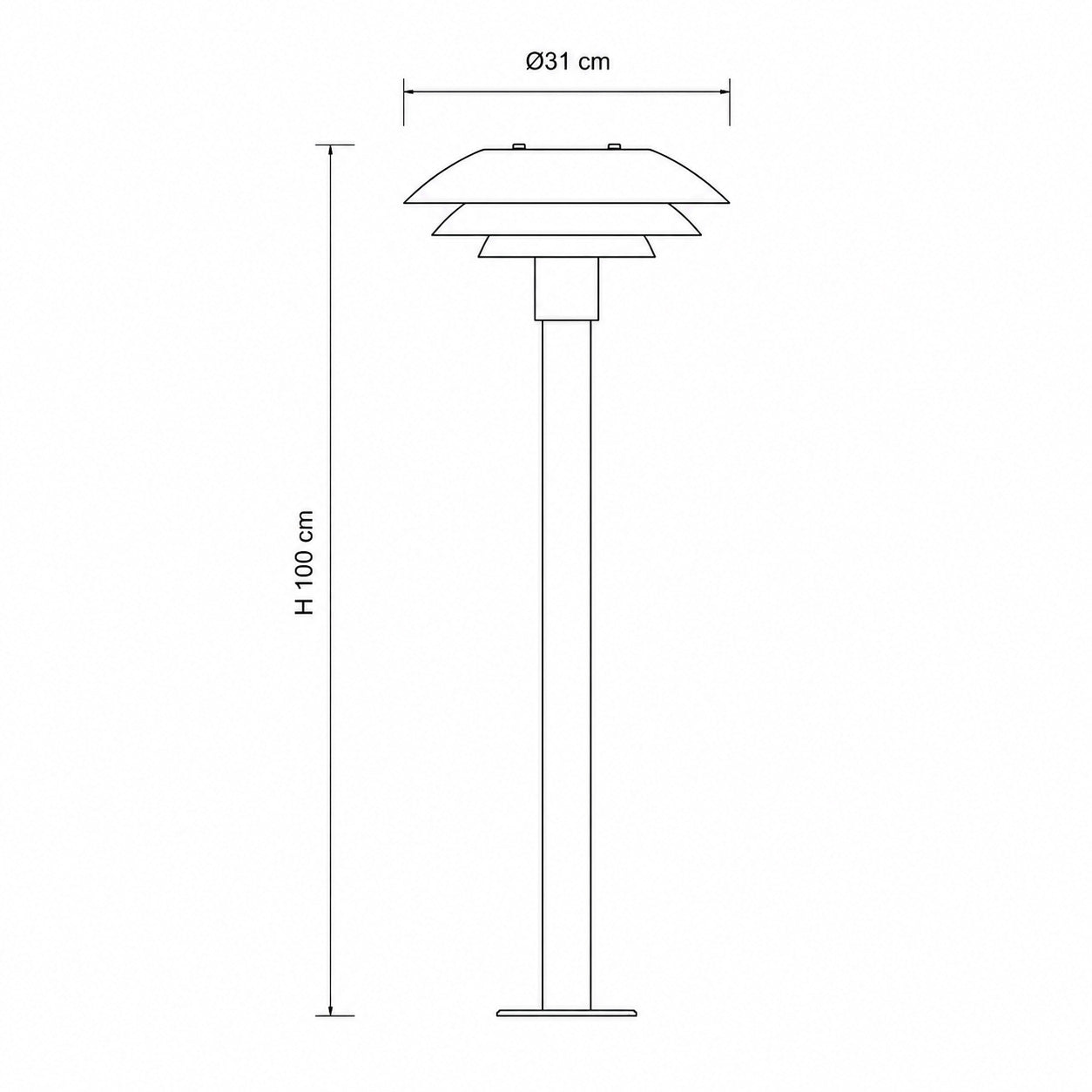

The fitting has a diameter of 310mm (width and depth are both listed as 310mm in the specifications), creating a substantial cylindrical profile. At 100cm tall and 310mm wide, the DL31 makes a bold architectural statement along pathways and borders, so ensure you have adequate spacing if installing multiple units—typically 2-3 metres apart works well for continuous path lighting.
